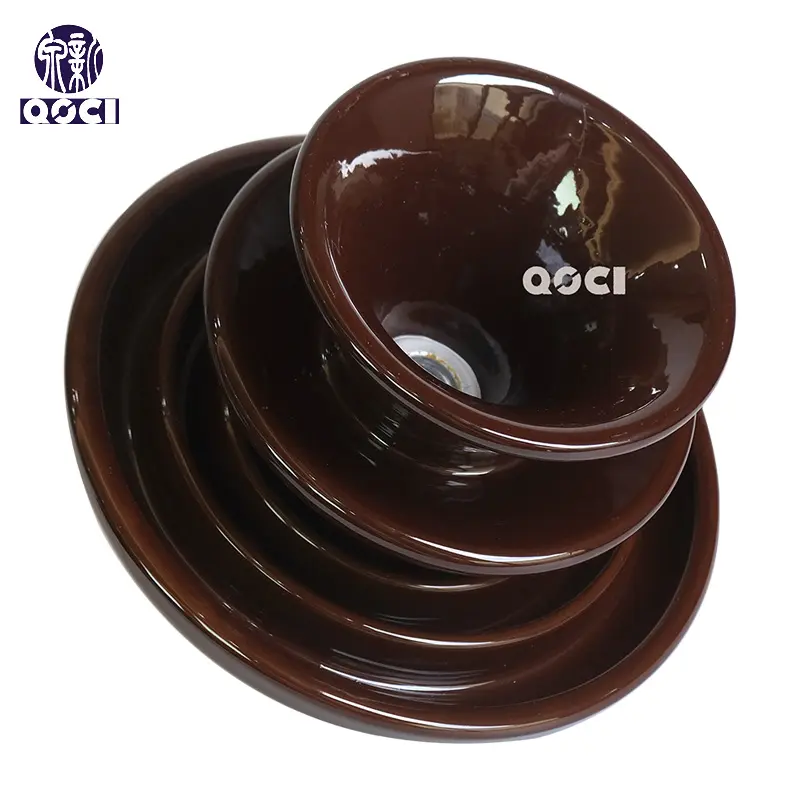

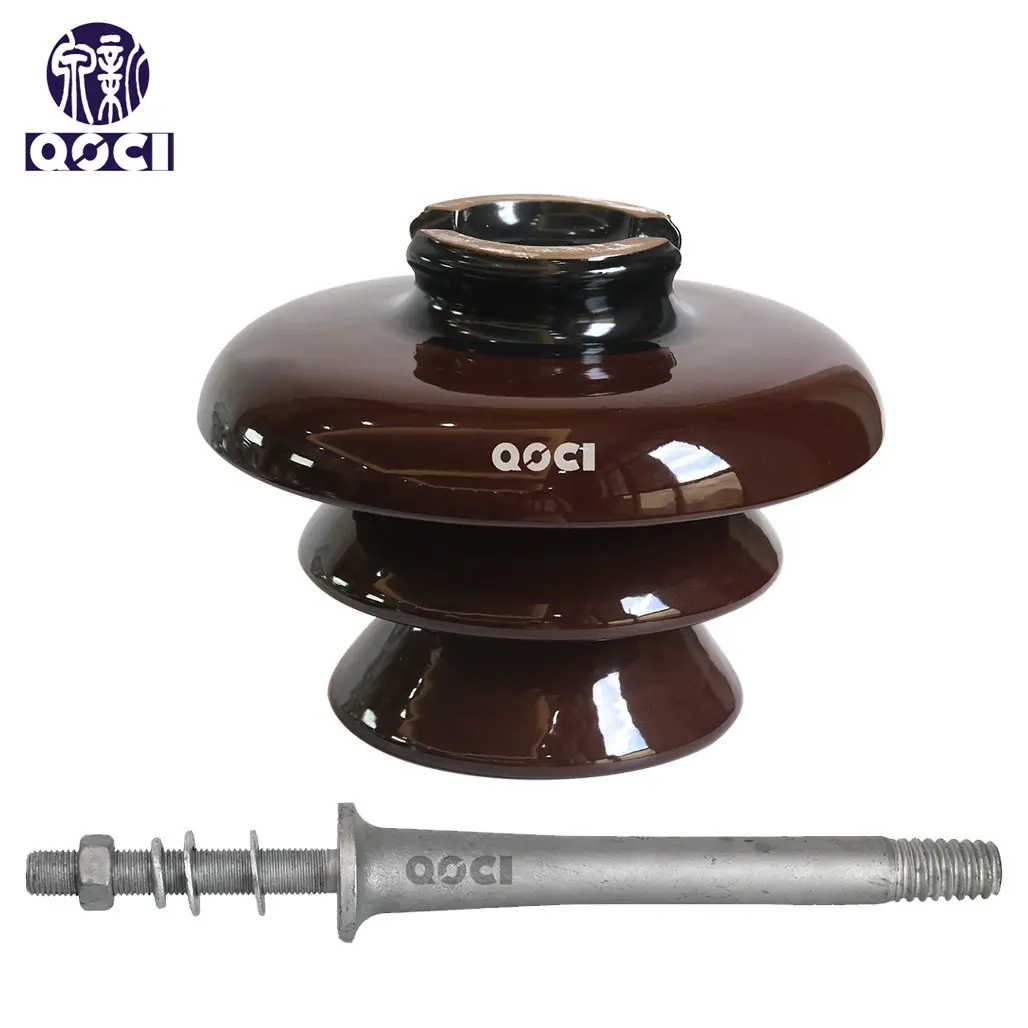

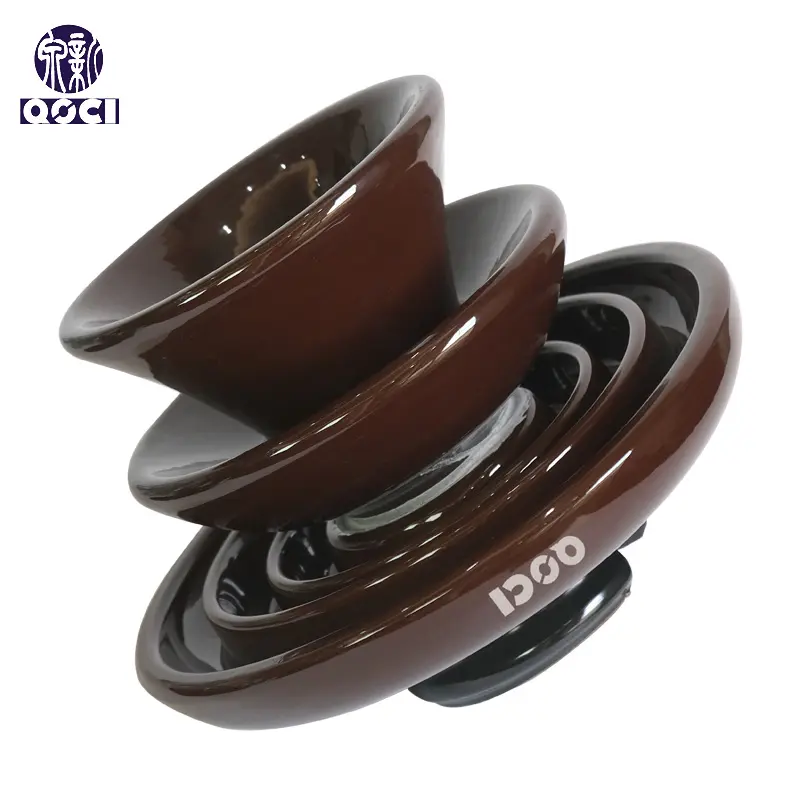

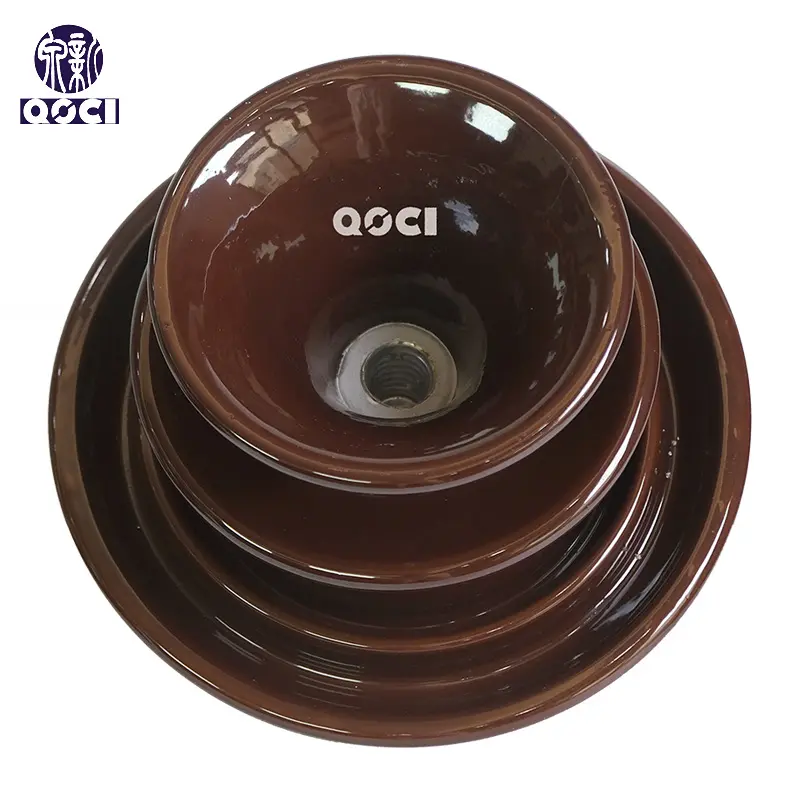

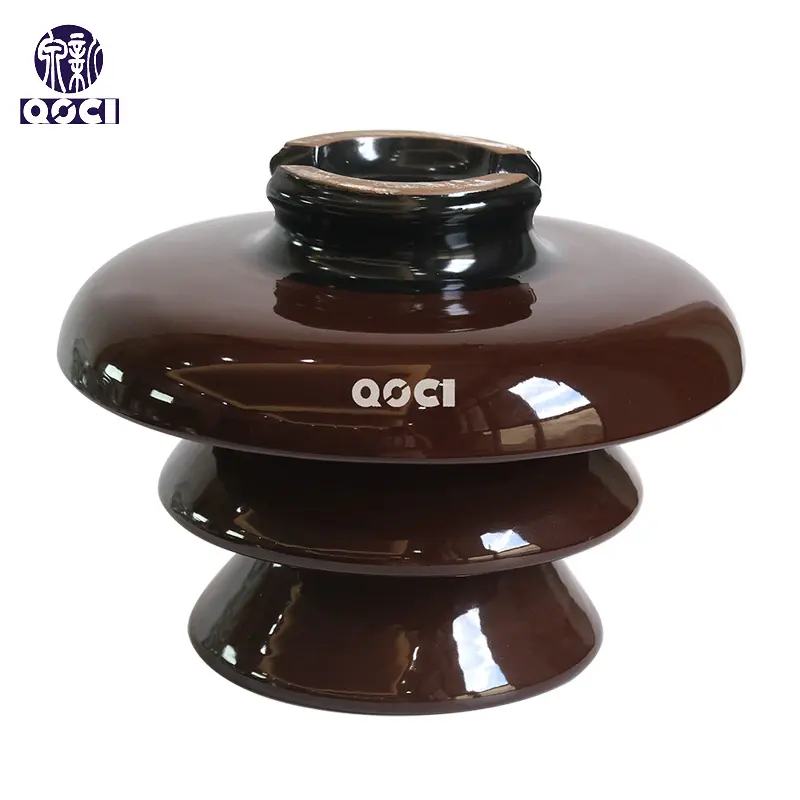

QOCI ELECTRIC -  P-33-Y is a pin-type insulator commonly used in distribution lines. It is mainly used in medium voltage transmission lines such as 33kV to support and insulate conductors to prevent current backflow to pole towers or other grounded structures.
Product Features:
Head groove: Used to secure conductors, often used with wire ties.
Center hole: Used to install a threaded metal pin for connecting to crossarms.
Shell design: Improves creepage distance and pollution resistance.
Strong electrical insulation: Suitable for outdoor lines in harsh weather conditions.

Send Inquiry

Product Description

1

Product Drawing

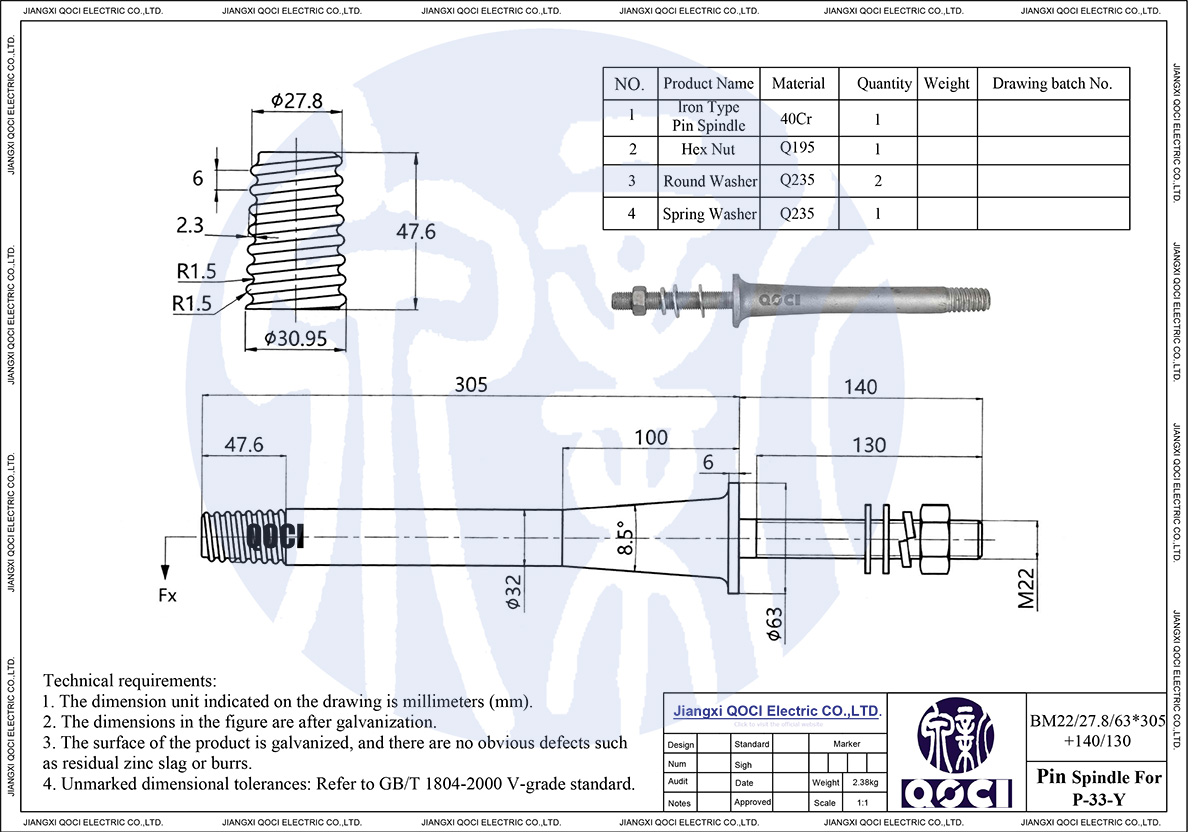

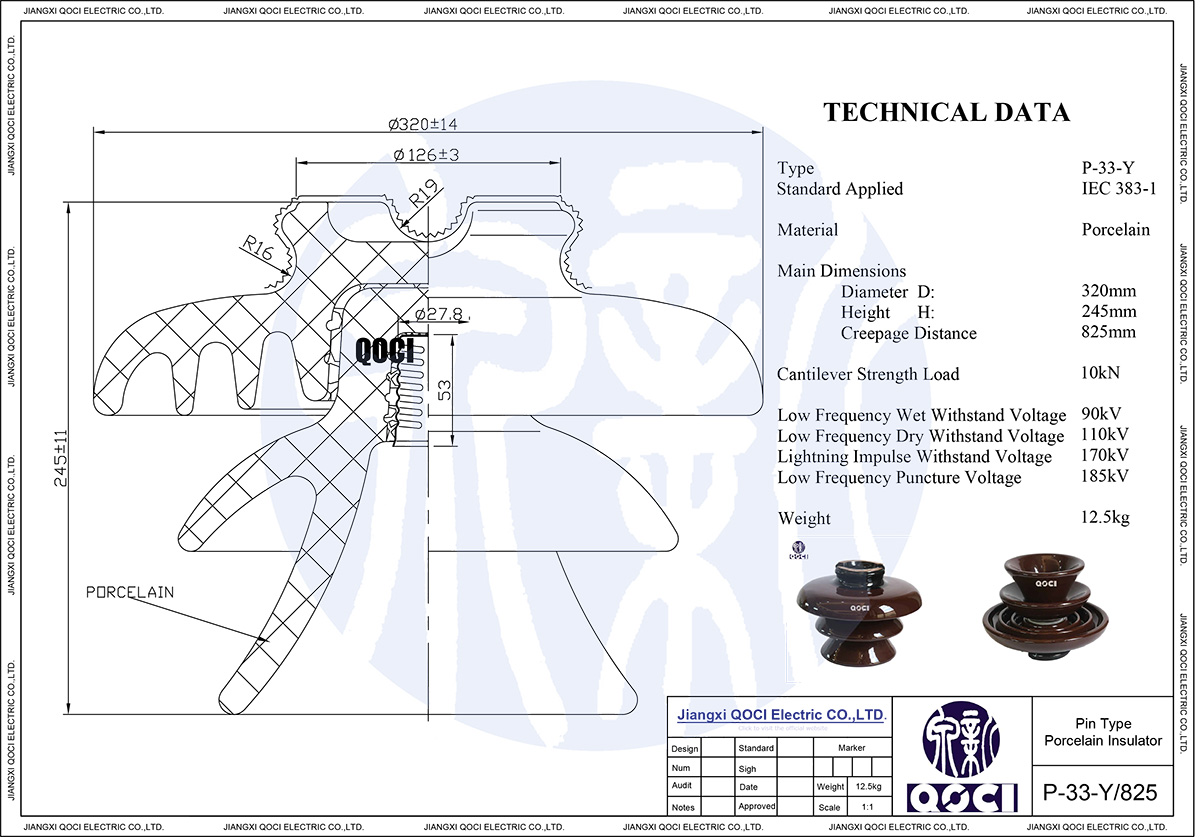

P-33-Y 825 Pin insulator Drawing
P-33-Y Technical Details
2

Product Parameters

Pin Type Porcelain Insulators - Type P-33-Y
Dimensions
Diameter mm 320
Height mm 245
Total creepage distance mm 825
Protected creepage distance mm 450
Recommended pin height mm 305
Mechanical Values
Cantilever strength kn 10
Electrical Values
Type application voltage kv 33
Power frequency dry flashover voltage kv 160
Power frequency wet flashover voltage kv 110
50% impulse flashover voltage, positive kv 190
50% impulse flashover voltage, negative kv 200
Power frequency puncture voltage kv 200
Radio Influence Voltage Data
Test voltage RMS to ground kv 22
Maximum RIV at 1000kHz μv 30dB
Net weight, approximate kg 12.5kg
3

Product Display

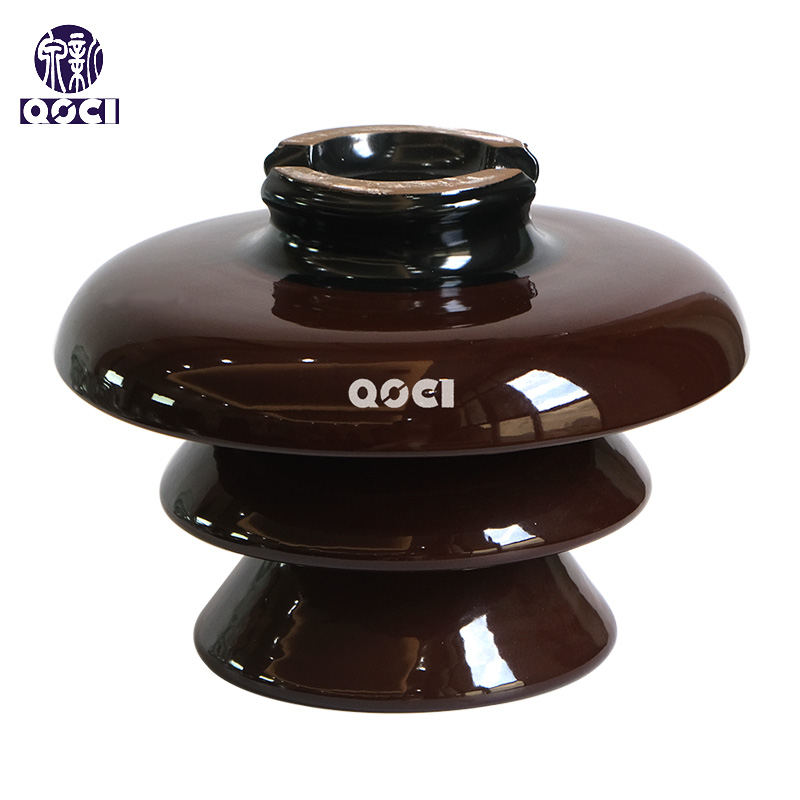

P-33-Y pin insulator display 1

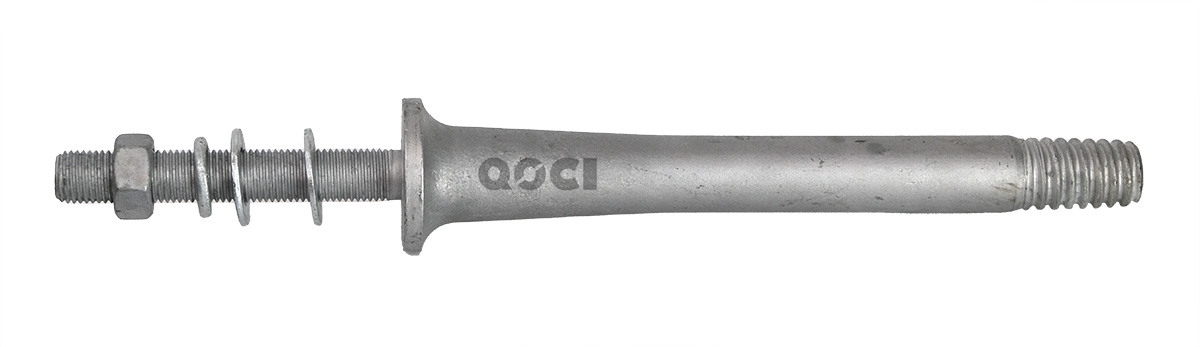

P-33-Y pin insulator display 2

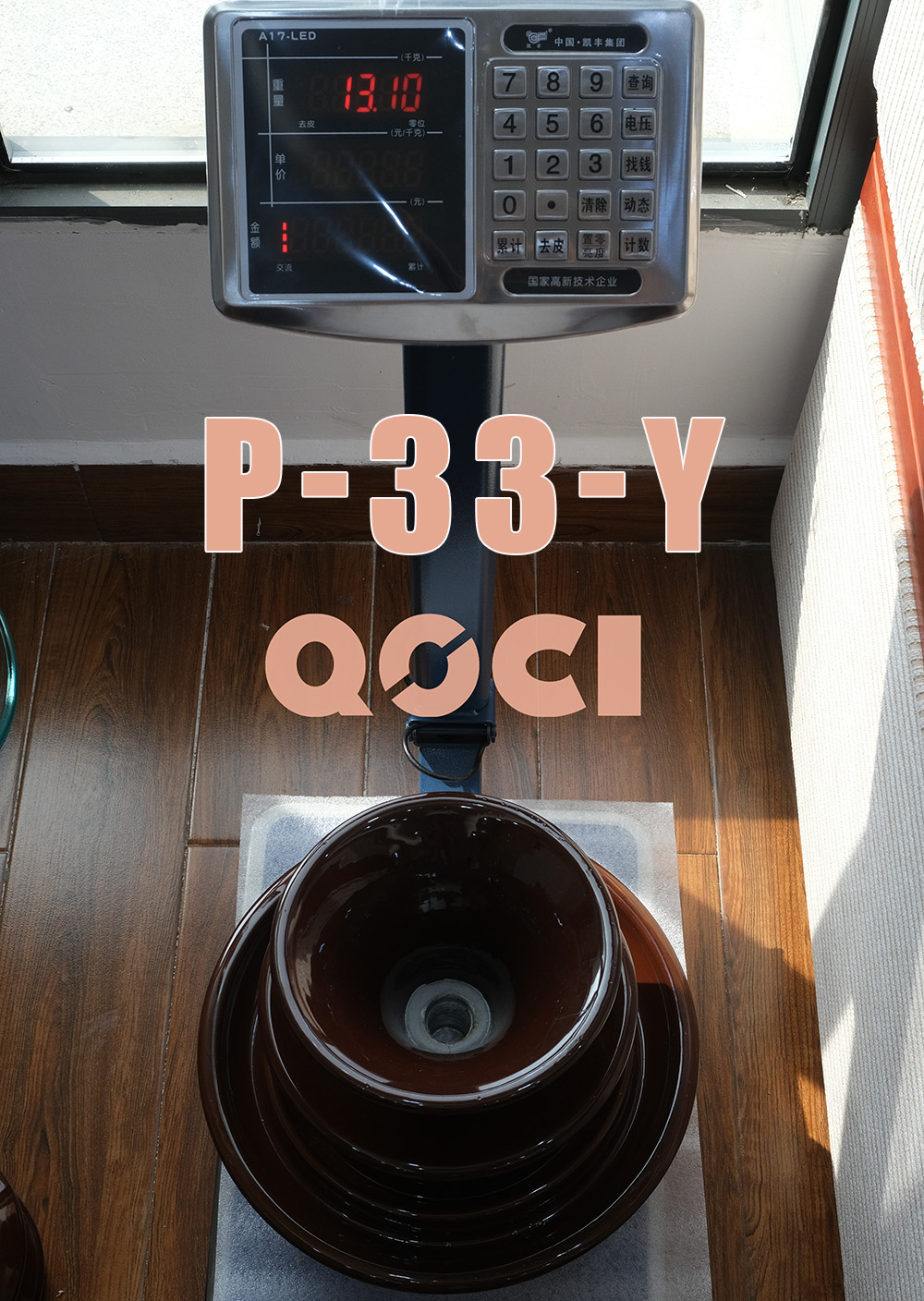

P-33-Y pin insulator display 3

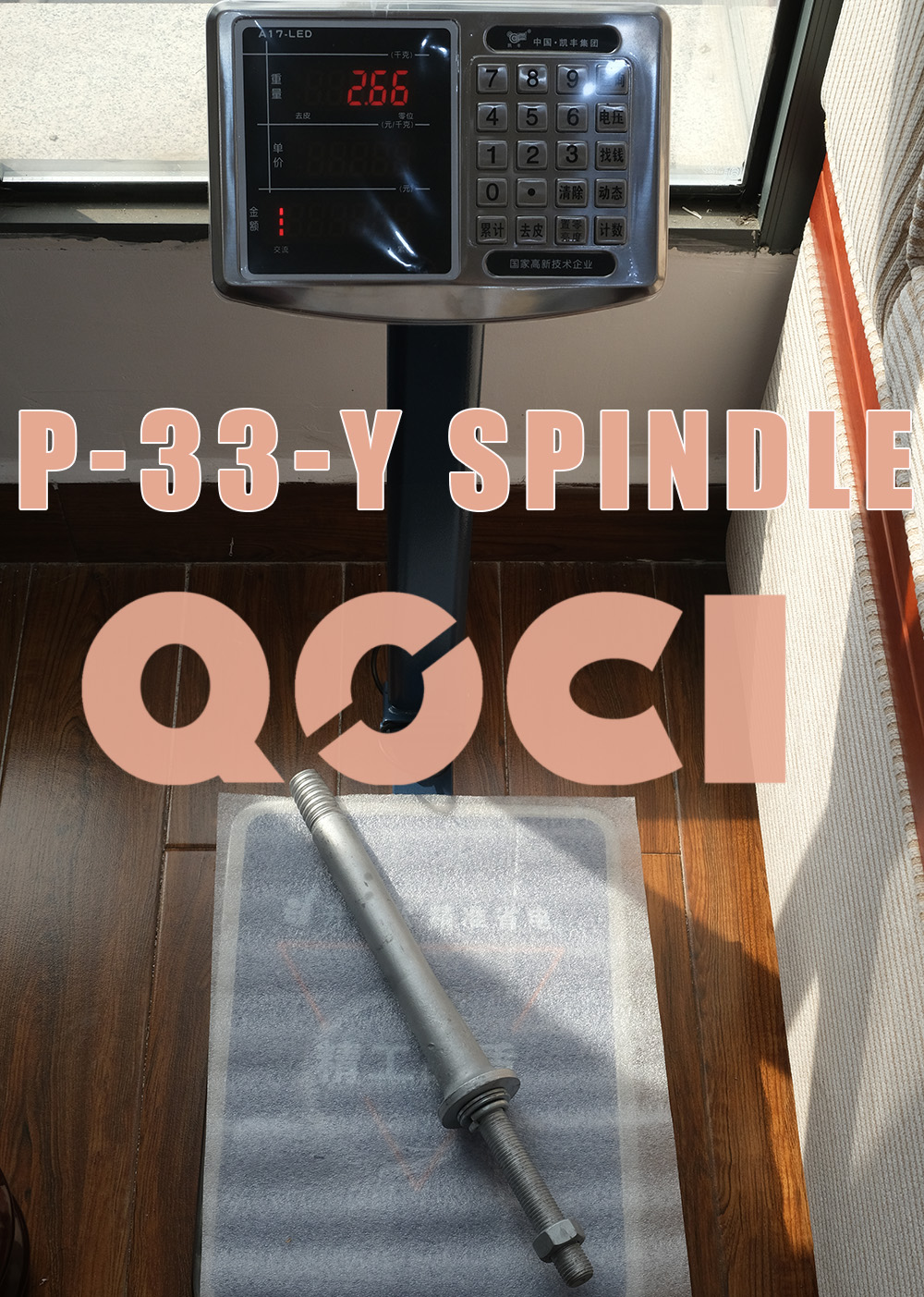

P-33-Y pin insulator display 4
?

Frequently Asked Questions

What is the application voltage for the P-33-Y pin insulator?
The P-33-Y pin type porcelain insulator is designed for a type application voltage of 33kV.
What is the total creepage distance of this model?
This model provides a total creepage distance of 825mm and a protected creepage distance of 450mm.
How much mechanical cantilever strength can it withstand?
The P-33-Y insulator has a rated cantilever strength of 10kN, ensuring reliable physical performance under load.
What are the impulse flashover voltage ratings?
The 50% impulse flashover voltage is rated at 190kV for positive and 200kV for negative impulses.
What is the approximate weight of a single P-33-Y insulator?
Each unit has an approximate net weight of 12.5kg.
Does the P-33-Y comply with Radio Influence Voltage (RIV) standards?
Yes, it features a maximum RIV of 30dB at 1000kHz with a test voltage of 22kV RMS to ground.
