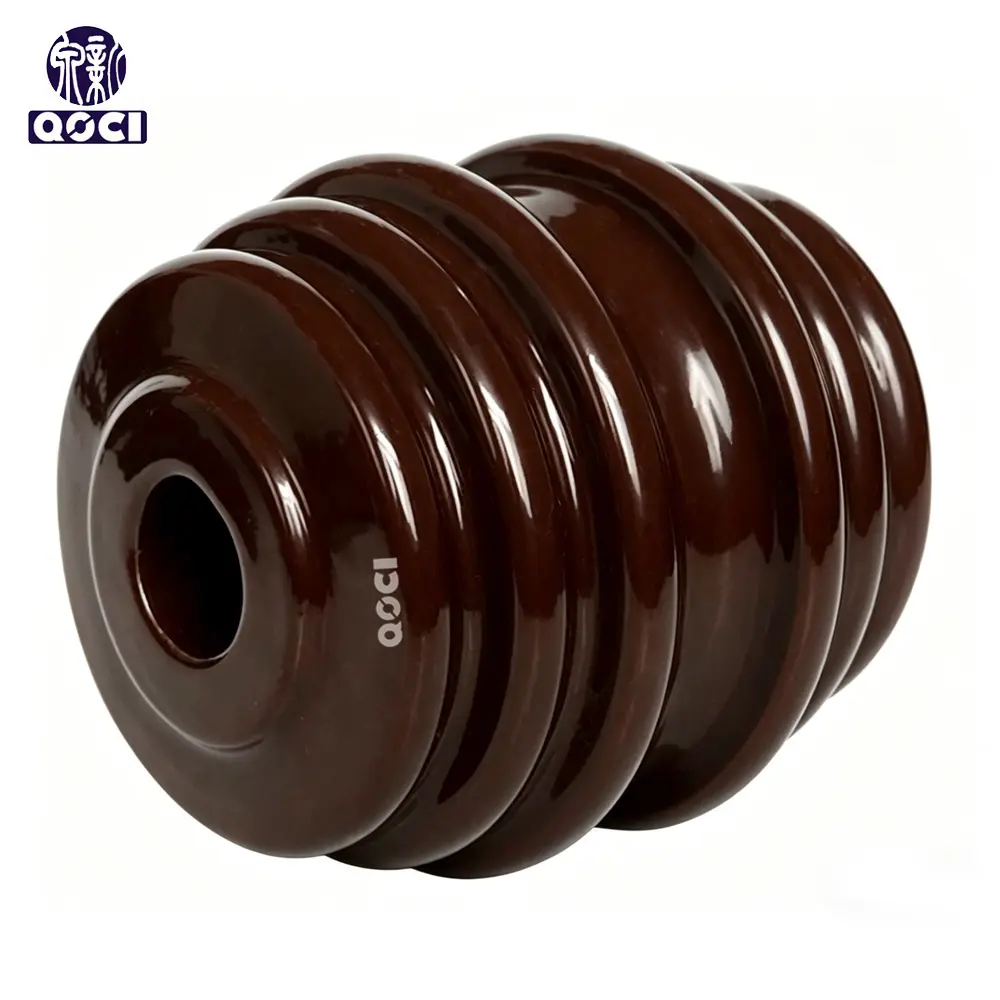

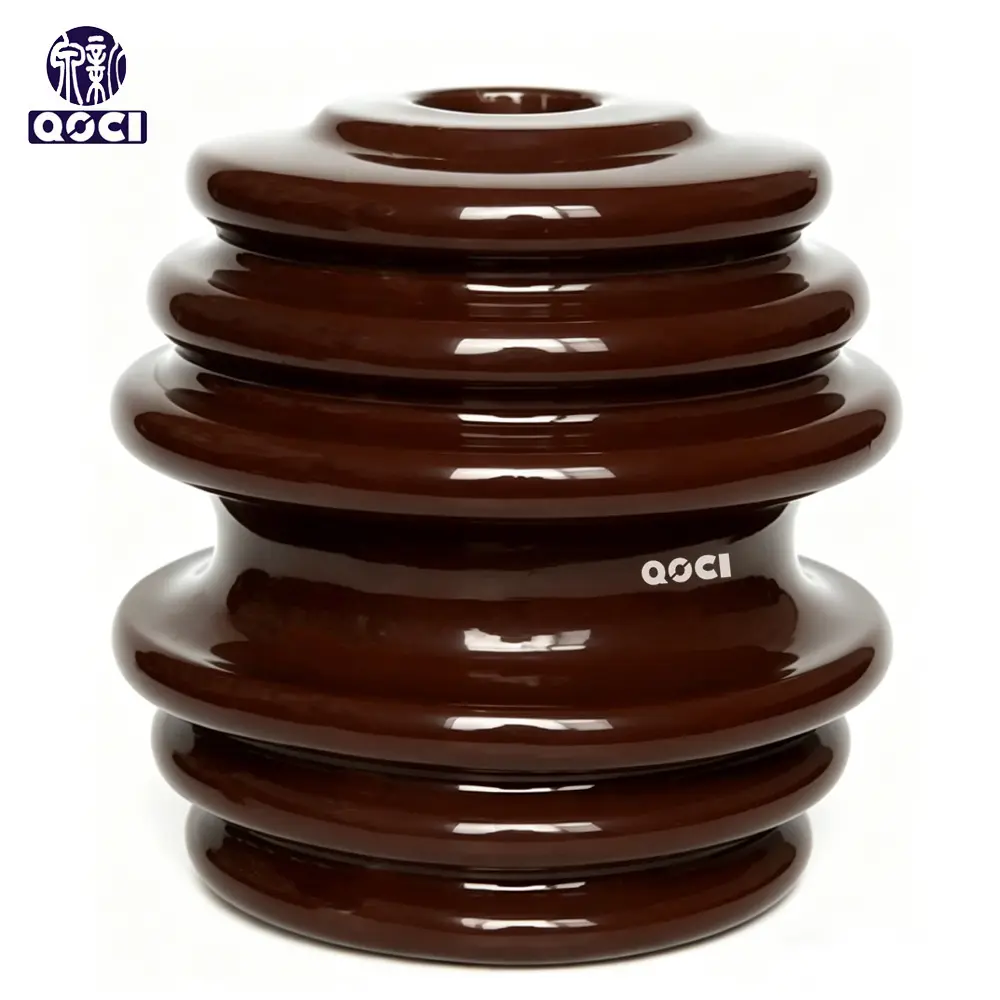

High-Quality Low Voltage ANSI 53-5 Ceramic Spool Insulator

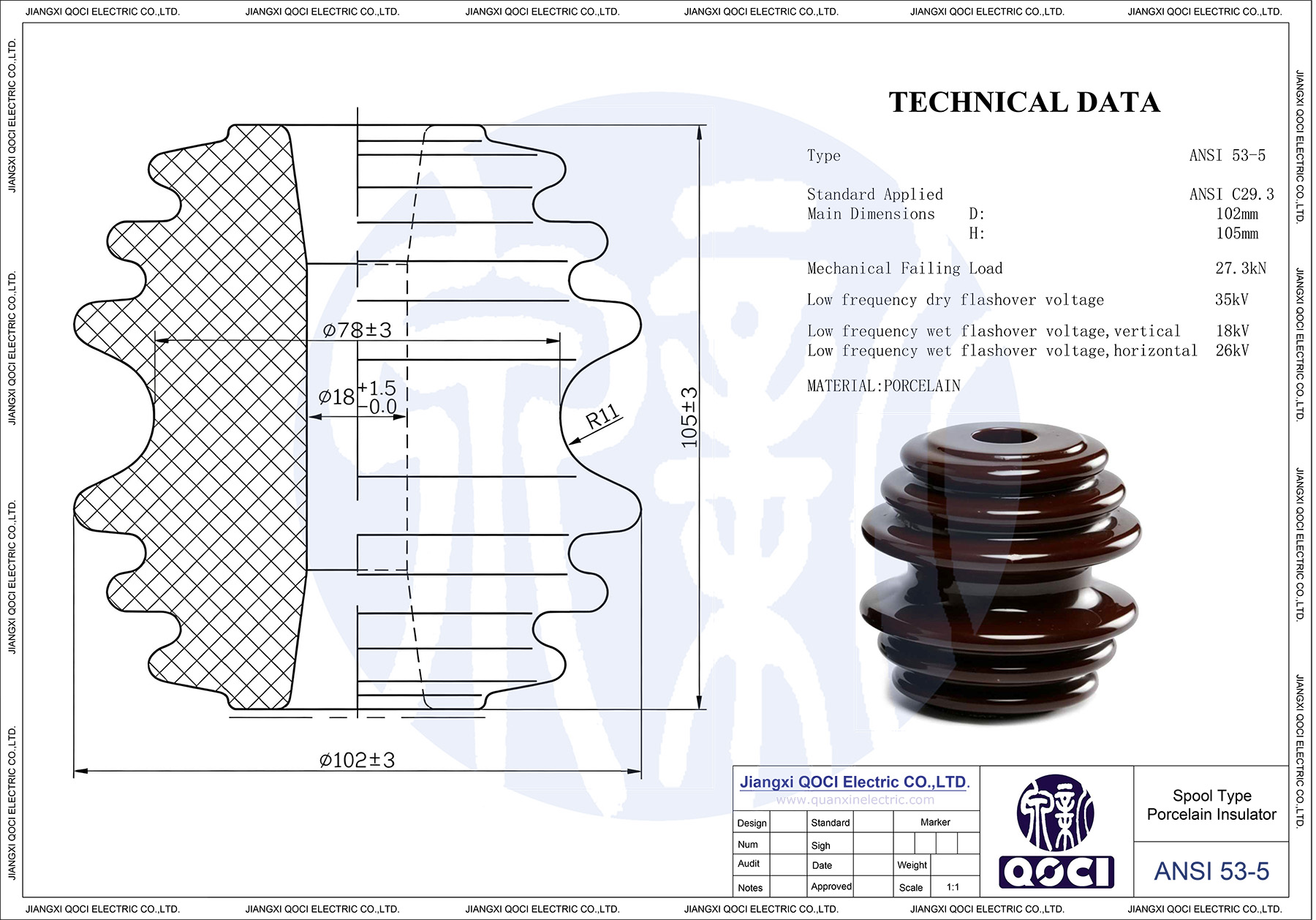

| Spacing (S) | 4 1/5 inch (105 mm) |
| Diameter (D) | 4 inch (102 mm) |
| Combined M&E strength | 6,000 lb (27.3 kN) |
| Low-frequency dry flashover voltage | 35 kV |
| Low-frequency wet flashover, vertical | 18 kV |
| Low-frequency wet flashover voltage, horizontal | 26 kV |
| Approx. net weight per unit | 1.2 kg |

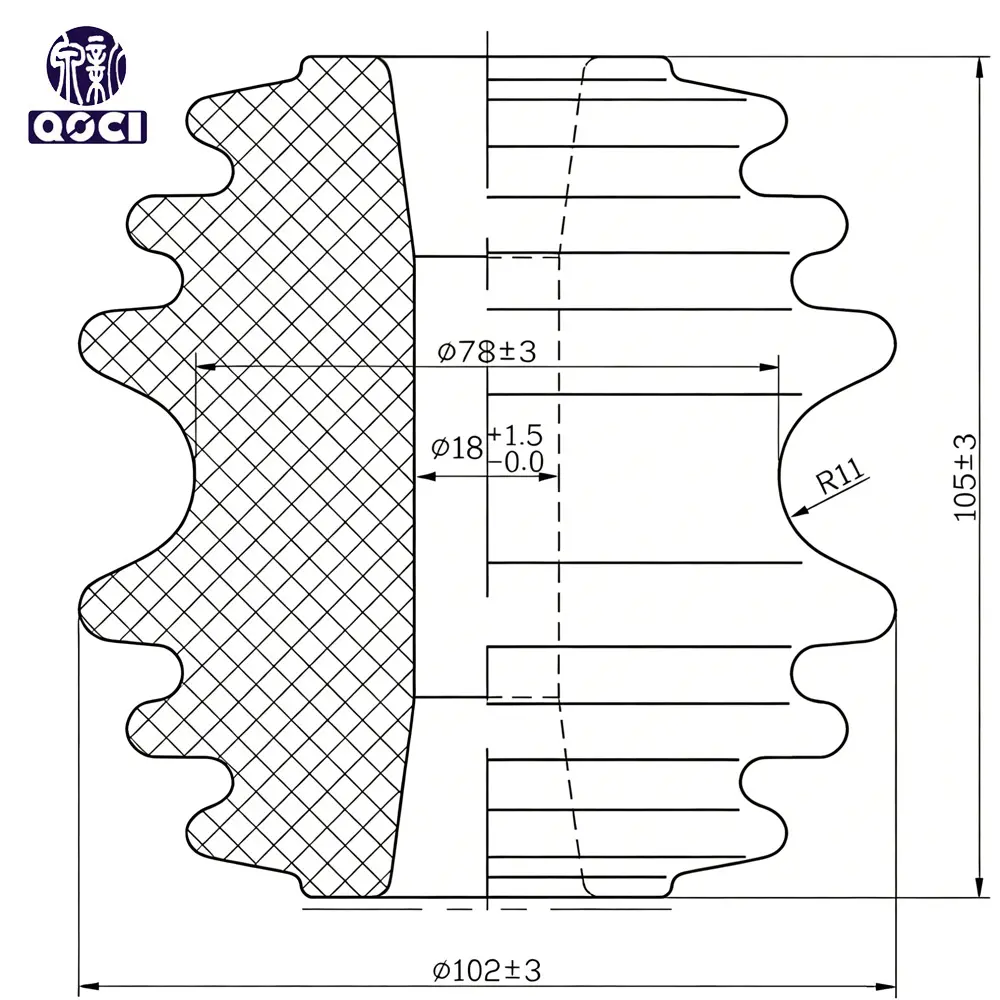

This insulator features a spacing (S) of 4 1/5 inches (105 mm) and a total diameter (D) of 4 inches (102 mm).
The combined mechanical and electrical strength limit is rated at 6,000 lb (27.3 kN).
The dry flashover voltage limit is 35 kV. The wet flashover limits are 18 kV when positioned vertically and 26 kV when positioned horizontally.
The insulator is manufactured in compliance with the ANSI C29.3 industry standard.
Each unit has an approximate net weight of 1.2 kg.
