Wholesale U100BS (127/255/320) Glass Insulator Factory, Factories
Wholesale U100BS (127/255/320) Glass Insulator Factory, Factories
Wholesale U100BS (127/255/320) Glass Insulator Factory, Factories
1 / 3
Wholesale U100BS (127/255/320) Glass Insulator Factory, Factories
Wholesale U100BS (127/255/320) Glass Insulator Factory, Factories
Wholesale U100BS (127/255/320) Glass Insulator Factory, Factories

Wholesale U100BS (127/255/320) Glass Insulator Factory, Factories

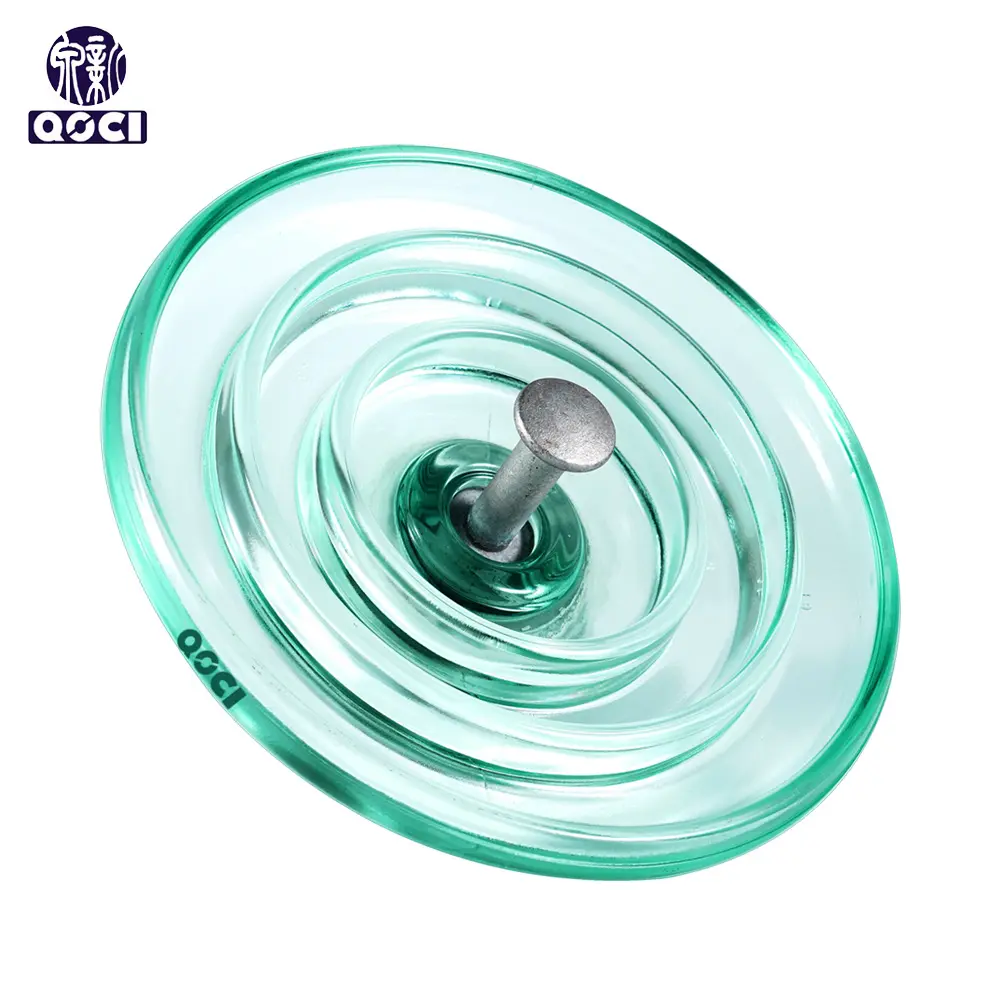

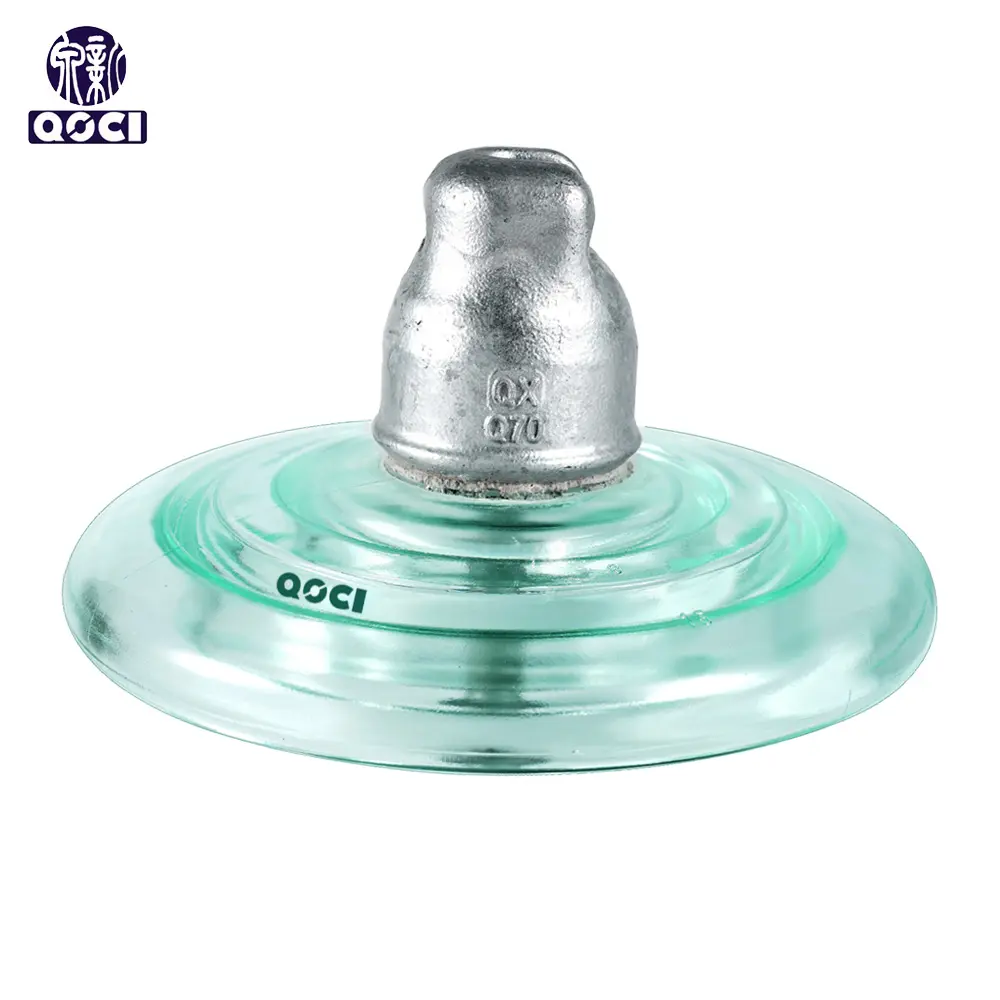

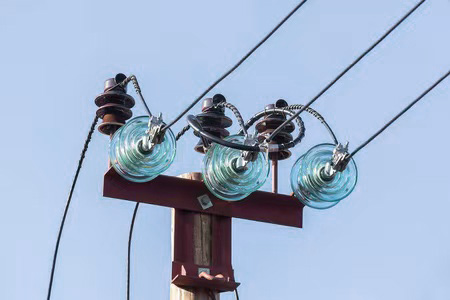

  • Disk type suspended glass insulators are used for insulation and fixing wires in high-voltage overhead transmission and distribution lines;
  • Generally assembled into insulator strings for use on lines of different voltage levels;
  • Ordinary insulators are suitable for general areas;
  • Appropriately increasing the number of insulator pieces can improve the pollution flashover performance.


Send Inquiry

Product Description

Product Information (IEC Standard: U100BS)

U
Disc Suspension Insulator
100
Mechanical failing load of 100kN
B
Ball And Socket Type
S
Shorter steel pin; Assembled to achieve a product structural height of 127mm.

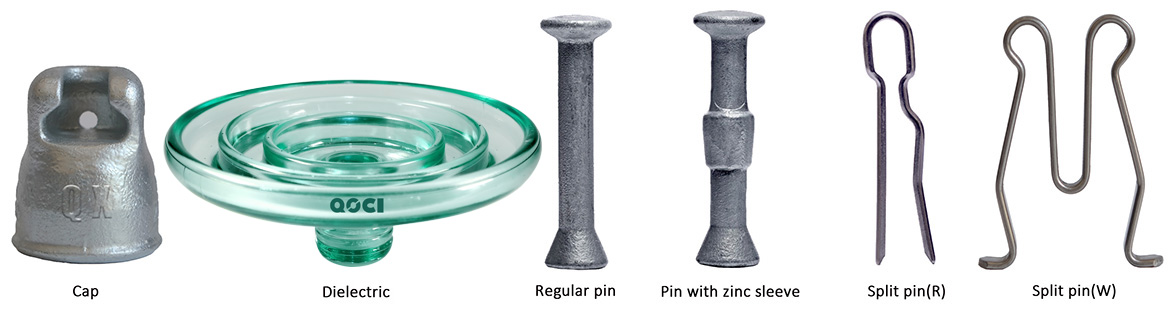

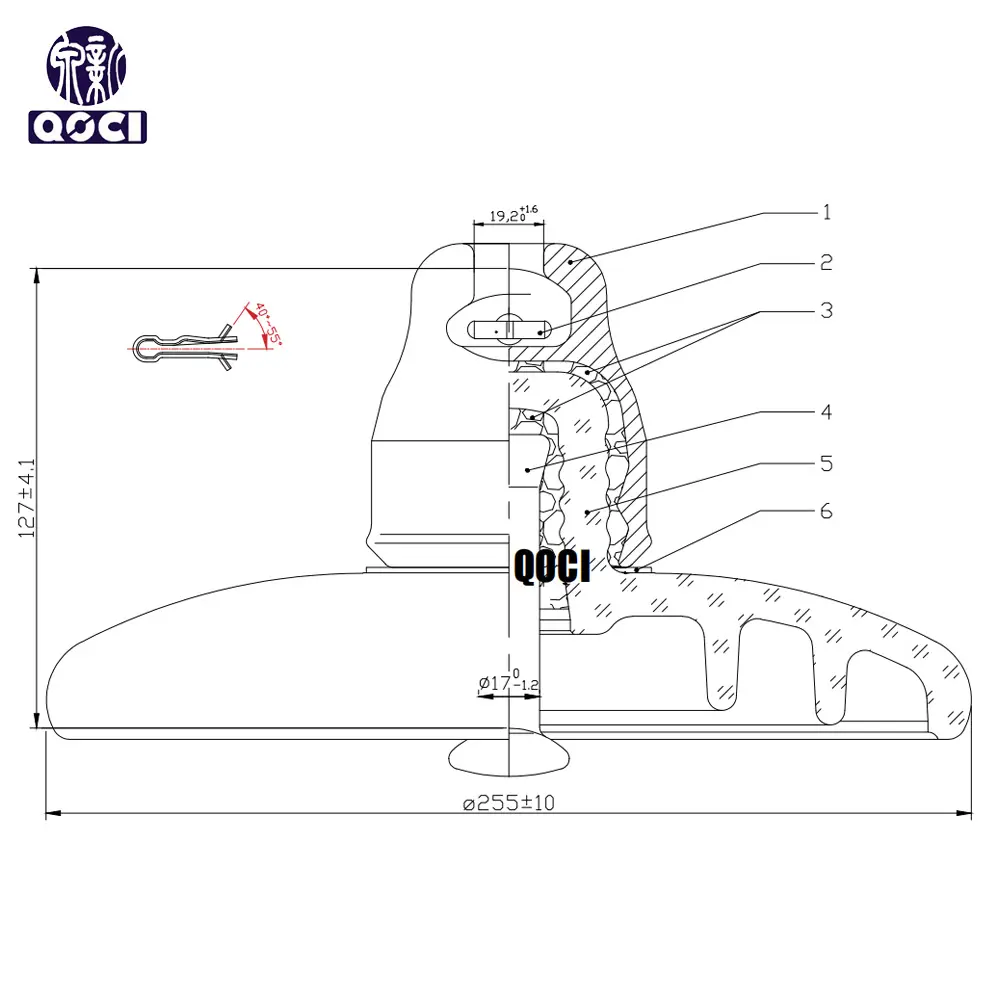

U100BS Technical Drawing

Dimensional Data

Spacing (S) 127mm
Diameter (D) 255mm
Creepage distance (L) 320mm
Socket coupling 16mm

Mechanical Values

Mechanical failing load 100kN
Mechanical residual strength 80kN

Electrical Values

Dry power frequency withstand voltage 70kV
Wet power frequency withstand voltage 40kV
Dry lightning impulse withstand voltage 100kV
Power frequency puncture voltage 130kV

Radio-influence Voltage

RIV test voltage rms to ground
Maximum RIV at 1000 kHz:		 10 kV
50 μV
Corona visual lest P/C 18/22 KV
Power frequency electric arc voltage 0.12s/20kA

Packing Information

Net weight 4.0kg
Carton Quantity 5pcs / 6pcs

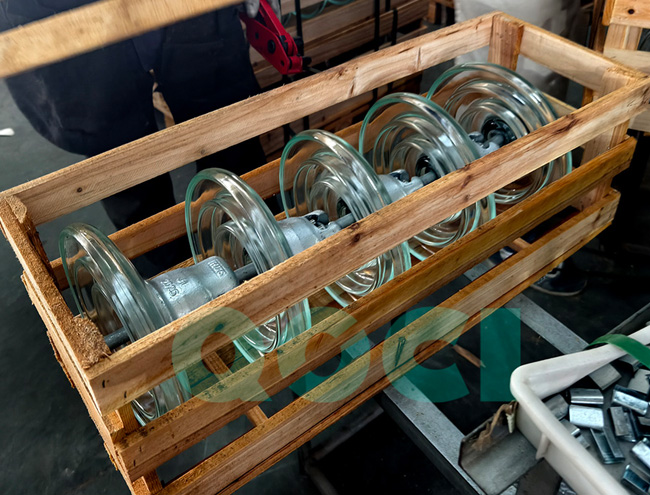

5pcs Packaging View 1
5pcs Packaging

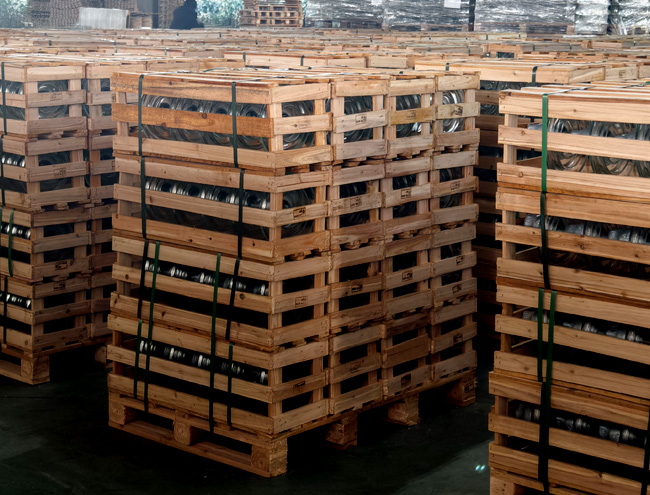

5pcs Packaging View 2
5pcs Packaging

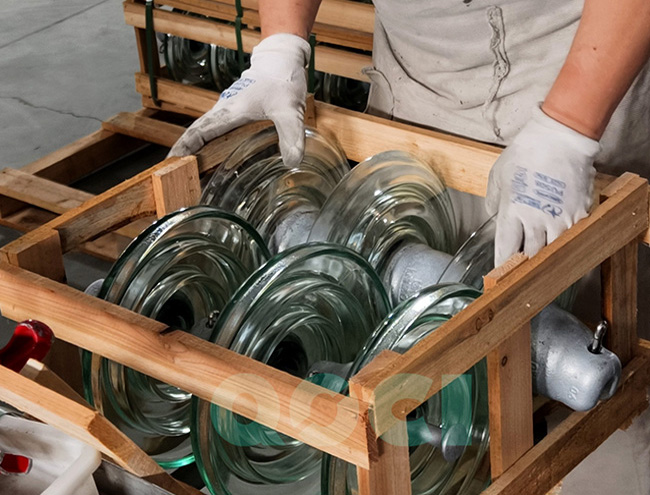

6pcs Packaging View 1
6pcs Packaging

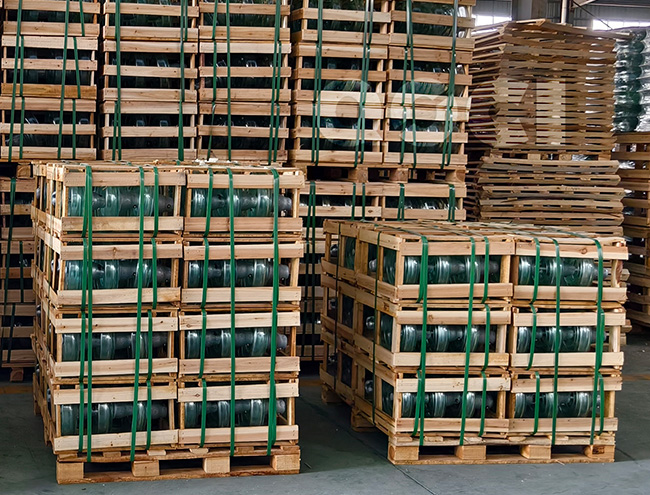

6pcs Packaging View 2
6pcs Packaging

Industry Standard(s)

Manufactured in accordance with IEC60383-1:1993 / GB/T1001.1

Industry Standards Compliance

Frequently Asked Questions

What does the U100BS designation mean?
The "U" stands for disc suspension insulator, "100" represents a mechanical failing load of 100kN, "B" indicates a Ball and Socket type connection, and "S" refers to a shorter steel pin resulting in a structural height of 127mm.
What are the key dimensions of this insulator?
The insulator has a spacing of 127mm, a diameter of 255mm, and a total creepage distance of 320mm, with a 16mm socket coupling.
What are its electrical performance limits?
It is designed to withstand a dry power frequency of 70kV, a wet frequency of 40kV, and a lightning impulse of 100kV. Its puncture voltage is rated at 130kV.
What is the mechanical strength of the U100BS?
It has a mechanical failing load of 100kN and maintains a mechanical residual strength of 80kN.
How is the product packaged for delivery?
Each unit has a net weight of approximately 4.0kg. They are typically packed in cartons containing either 5 or 6 pieces.
Which quality standards does this insulator follow?
The product is manufactured strictly according to the IEC60383-1:1993 and GB/T1001.1 international and national standards.
