40KN IEC Standard High Voltage Suspension U40B/110mm Glass Insulator for Power Lines

Hv Glass Suspension Insulator of U40b for Transmission and Distribution Insulators

Hv Glass Suspension Insulator of U40b, U70BS/U70bl for Transmission and Distribution Insulators

China Factory Price 40kN U40b Ball and Socket Type Disc Suspension Glass Insulator Suspension Insulator Price

In Stock IEC U40B 40KN Disc Glass Insulators For Power Lines

High Voltage Toughened Glass Insulator for Power Transmission Line U40b

Send Inquiry

Product Description

â–ķ

Product Video

i

Product Information

Model: U40B
U: Disc Suspension Insulator
40: 40kN Rated Mechanical Failing Load
B: Ball and Socket Type
Dimensions
110mm: Structure Height
175/178mm: Disc Diameter
190mm: Creepage Distance
Key Specs
Type: Standard profile Toughened Suspension
Rated Load: 40kN (Approx. 4 tons)
Standards: IEC60383-1:1993, GB/T1001.1

Purpose: Widely applicable as insulation support for medium and high voltage transmission lines and substation equipment, capable of stable operation under various climatic conditions.

Note: Connection structure complies with IEC60120 and BS 3288. Unless specified, an R-pin locking device is standard for the U40B.

✎

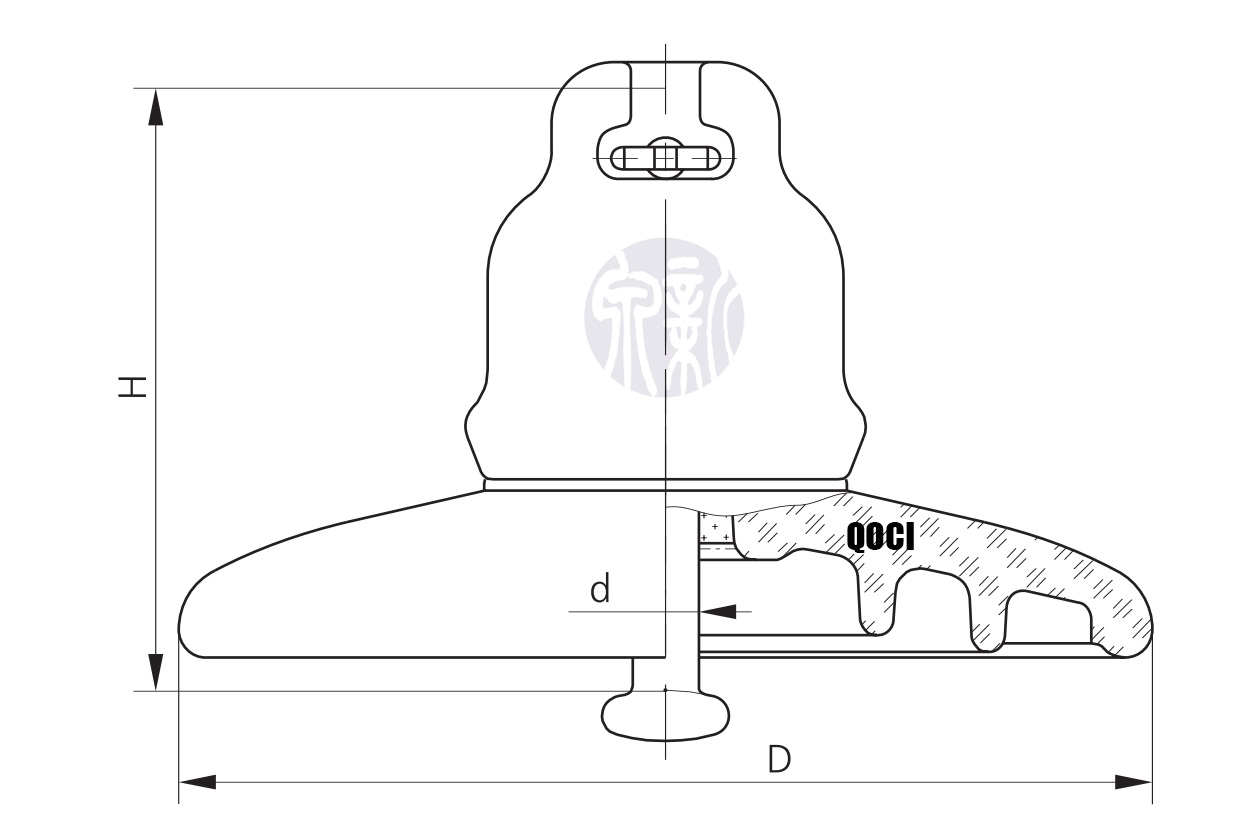

Product Drawing

U40B Drawing
📊

Technical Parameters

IEC Designation Unit U40B/110
Mechanical failing loadkN40
Diameter Dmm178
Height Hmm110
Creepage distance Lmm190
Socket couplingmm11
Wet power frequency withstand voltagekV25
Dry lightning impulse withstand voltagekV50
Power frequency puncture voltagekV90
Radio interference voltage (10kV 1MHz)Ξv50
Corona visual testkV18/22
Power frequency electric arc voltagekA0.12s/20kA
Impulse puncture voltageP.U2.8
Net weight per unitkg2.1
⚙

Suspension Insulator Components

Components Diagram
  • ● Dielectric: Toughened glass with optimal properties for environmental durability.
  • ● Cap: Hot-dip galvanized nodular or ductile malleable cast iron.
  • ● Pin: Hot-dip galvanized forged steel.
  • ● Assembly: High-grade aluminous cement used for thermomechanical strength.
  • ● Locking Device: Stainless steel or phosphor bronze split pin (W-pin or R-pin).
📷

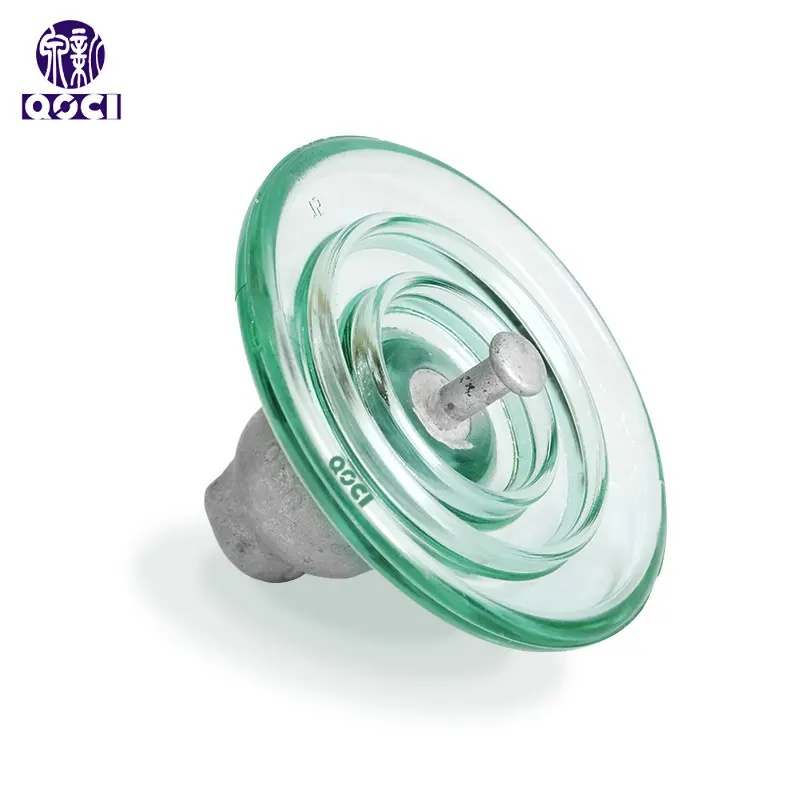

Detailed Photos

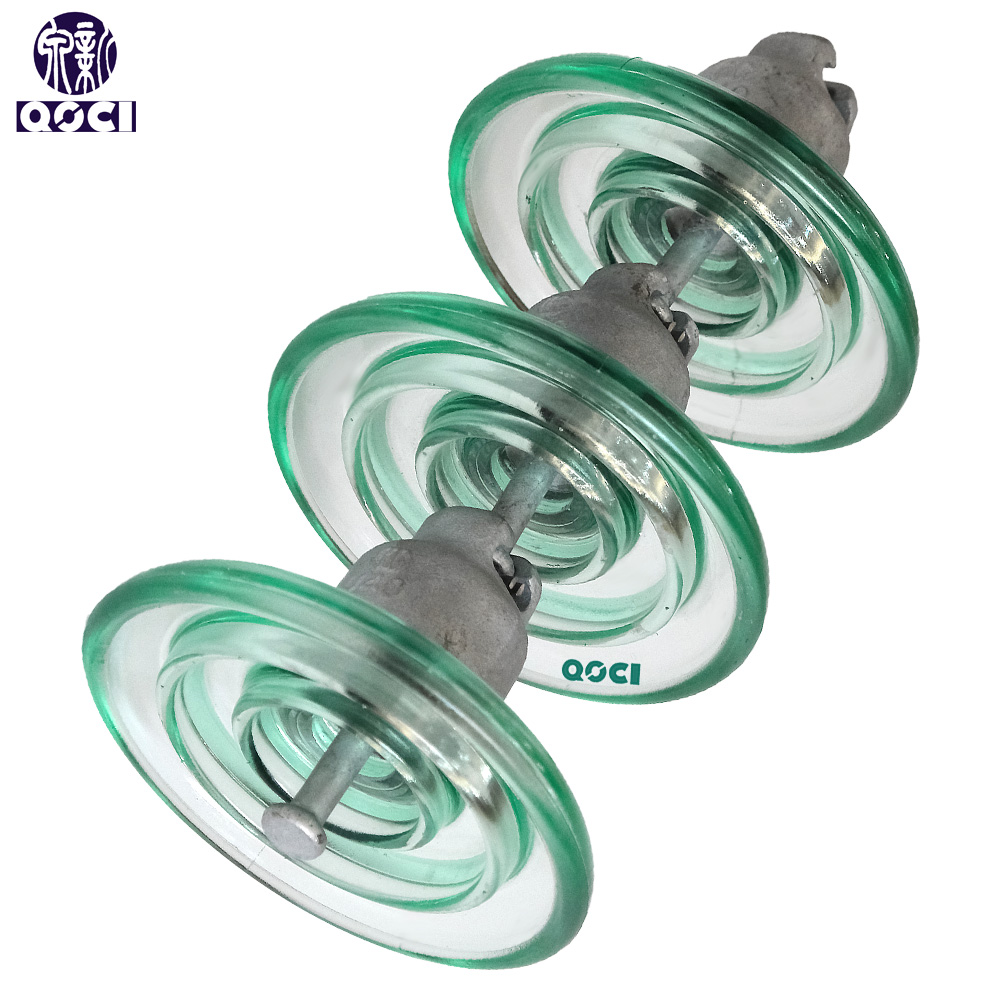

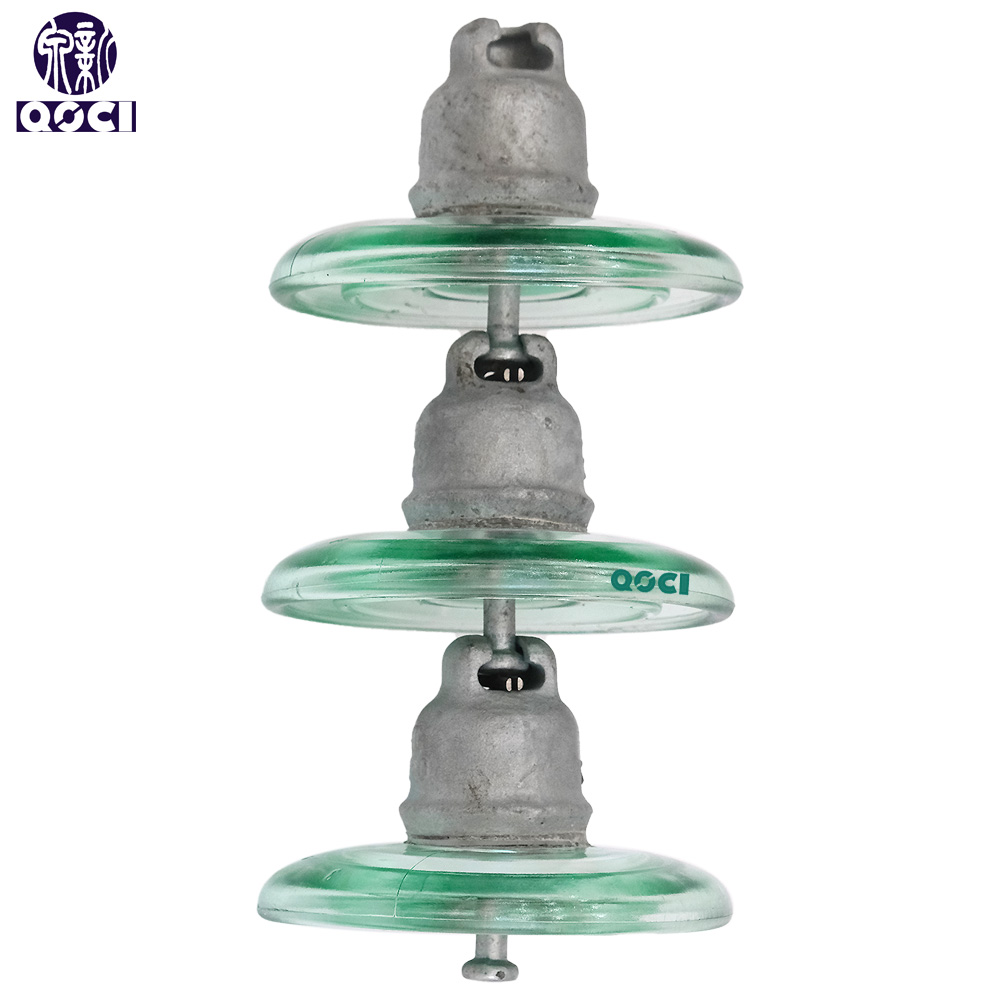

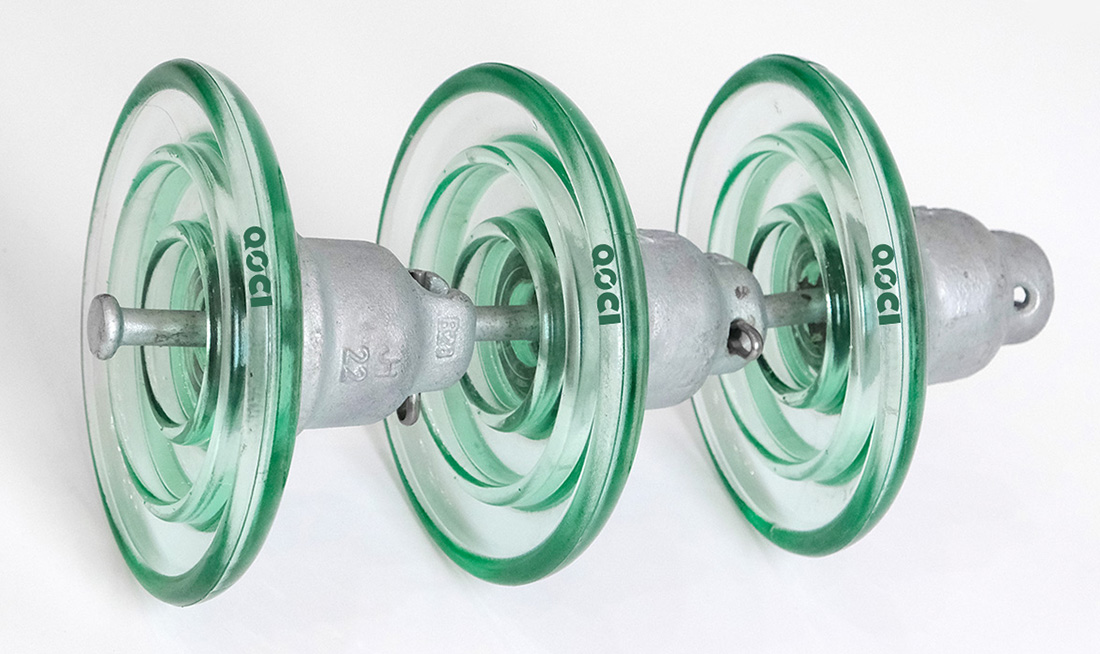

U40B detail 1
U40B detail 2
U40B detail 3
ðŸ“Ķ

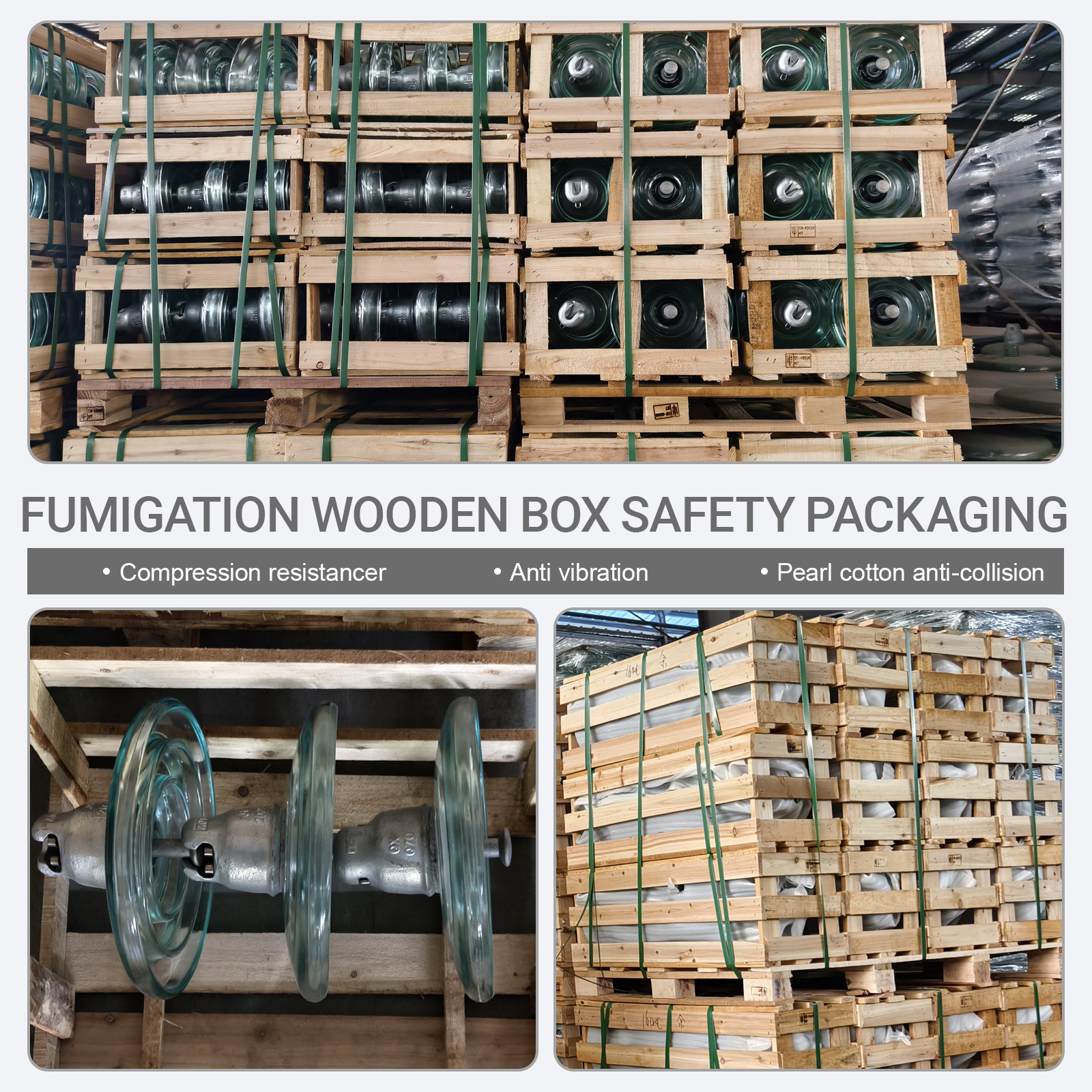

Packaging

Packaging

Frequently Asked Questions

What does the model name "U40B" represent?
"U" stands for Disc Suspension Insulator, "40" indicates a rated mechanical failing load of 40kN, and "B" signifies the Ball and Socket connection type.
What material is used for the insulator's dielectric part?
The dielectric is made of high-quality toughened glass, chosen for its excellent electrical and mechanical properties.
Can this insulator be used in heavily polluted environments?
Yes, for high-pollution areas, it is strongly recommended to use a sacrificial zinc sleeve on the pin for enhanced anti-corrosion protection.
What standards do these insulators comply with?
They are manufactured in accordance with IEC60383-1, GB/T1001.1 for product models, and IEC60120/BS 3288 for connection structures.
What is the standard locking pin provided?
Unless special instructions are provided by the customer, an R-pin is the standard locking device used for the U40B model.
What is the mechanical capacity of the U40B?
The U40B has a rated mechanical failing load of 40kN, which is approximately equivalent to 4 tons.
